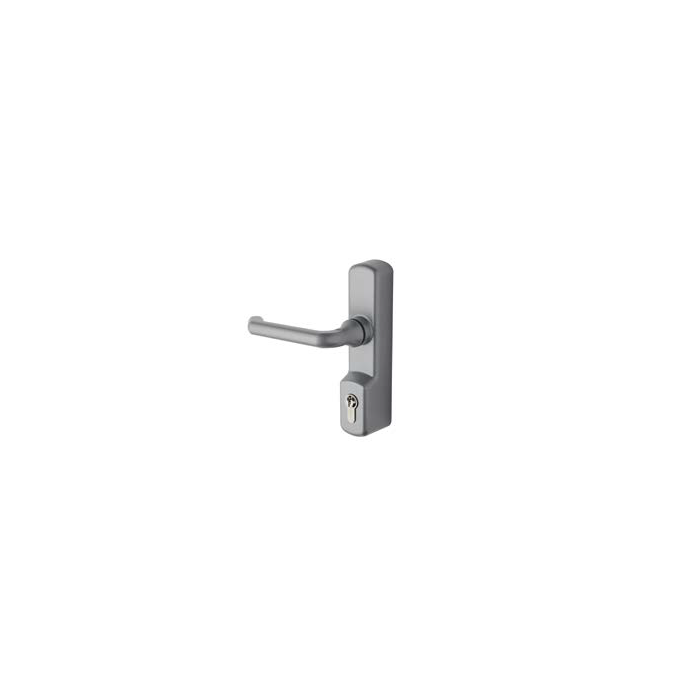

Exidor 425EC Lever Outside Access Device


From

£96.00 As Standard

Delivery starting @ £12.00

Lead Time: 1-3 Working Days

Exidor easy and convenient lever outside access device for use with 400 series hardware

Features and Benefits

  • Lever design is simple and easy to open with hand, fist, elbow
  • Helps meet BS 8300 requirements for barrier free access
  • Bolt through fixings make it suitable for steel or timber doors up to 58mm thick
  • Euro cylinder
    • Supplied with 3 keys
  • Locking the cylinder prevents access into the building but will not prevent escape out of the building
  • Excellent for access doors like factory or retail unit’s staff entry points

Specification

  • Activation - Lever handle
  • Door type -
    • Single doorset
    • Rebated double doorset - active leaf
    • Plain meeting stile double doorset - either leaf
  • Projection - 95mm from door face
  • Max door height 2440mm
  • Max door mass Up to 200kg
  • Handing Universal
  • Finish - Silver
  • Cylinder specification - 45mm Euro profile cylinder, with side face drill and tap fixing
  • Suitable for use with 400, 401, 402, 403, 416, 417, 404, 405, 418, 419

Testing and certification

  • UKCA / CE marked - As an approved accessory to the internal hardware
  • Certified 400 series accessory as part of EN 1125 and EN 179
  • Suitable for fire doors - No
£96.00

FAQs



All our cylinders for single doors are stored in the top of the door frame in a white fabric bag. For double doors the cylinder and key set can be found in one of the boxes of handles supplied.

All our frames come supplied with side channels that are fitted around the outside of the frame. The side channels expand by winding out the fixing bolts which in turn push the side channels outwards allowing you to expand the frame between the two measurements.

All our doors are designed to open outwards which makes them more secure and weather-proof. If you require the door to open inwards you are required to install the frame the opposite way, this does have an effect on the security and weather-proof aspect of the door. We would recommend adding a rain drip to any inward opening doors being installed externally helping to prevent water ingress.

A blanking plate is a sheet of steel used to cover the handle fixing locations that are pre-cut into our multi-point locking door blades. These are only necessary if you don’t require a lever handle to be fitted, we offer these with or without key access.

Stock items are normally dispatched within 5 working days.

None stock custom orders including fire exits are normally dispatched within 4 to 5 weeks

Powder coated orders are normally dispatched within 5 to 6 weeks.

Orders are normally delivered within 24 to 48 hours upon being dispatched and are normally delivered between Monday and Friday between the hours of 09:00 and 17:00.

We do offer collections, this is currently not available online. You would need to contact the office on 01260 295 996 or send an email to [email protected] with your requirements so we can forward a pro forma.
